Huawei SmartAX MA5608T GEPON OLT 4 Port 8 Ports 16 Ports Mini Size

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	SmartAX MA5608T

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX FTTC Optical Network Access	Product Name:	Huawei SmartAX MA5608T OLT Equipment
Type:	OLT	Maximum Uplink Port:	4GE ; 410GE
Condition:	100% Original Brand	Power Supply:	MPWD AC; MPWC DC;
GPON Service Ports:	8ports, 16ports, 32ports	NMS:	Supported
Access Capacity:	4810G GPON ; 96GPON; 288*GE
Highlight:	MA5608T GEPON OLT 4 Port , Huawei SmartAX GEPON OLT 4 Port , MA5608T huawei epon olt

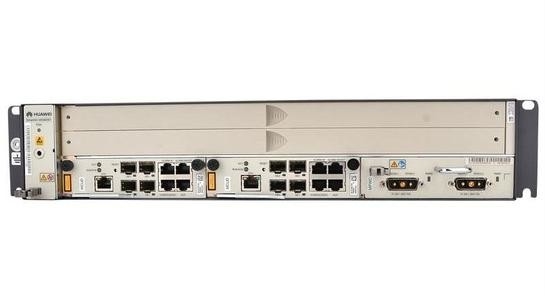

Original SmartAX MA5608T Mini size OLT GEPON device

The MA5608T Mini OLT is designed to address Fiber to the premise (FTTP) or deep fiber deployment scenarios where a large OLT chassis may not be the best fit for a variety of reasons. Huawei's mini OLT MA5608T is designed to be the perfect complement to the other MA5600 series larger OLTs and offers the same carrier grade features and performance. MA5608T's compact and front access design make it an ideal solution for deployments in locations such as space-constrained huts, outdoor cabinets or building basements. It has AC and DC powering options, extended temperature range, and offers easy installation.

Specifications of Huawei OLT MA5608T:

Powering Options	DC: -38.4VDC to -72VDC; AC: 100V to 240V
Dimensions (Height x Width x Depth)	3.47in x 17.4in x 9.63in
Operating Temperature	-40º F to +149º F
Storage Temperature	-40º F to +158º F
Cooling	Two multispeed fans, providing left to right forced air flow
Weight	7.8 lbs (3.55 kg) empty
Operating Humidity	5% to 85%, non-condensing, Altitude: 197 ft (60 m) below sea level to 13,123 ft (4,000 m) above sea level
Regulatory and Safety	UL listed, FCC, NEBS Level 3

Product Feature

GPON	• 16 ports per card or 8 ports per card • Robust Compliance to G.984 Series standards with 2.5/1.2 Gbps downstream and 1.2Gbps line speed performance • Support for B+ or C+ optical modules (SFPs) with max 40km differential distance • Up to 1:128 split ratio per GPON port • Optical Power Monitoring, Real Time Rogue ONT detection/isolation
XG-PON1	• 4 ports per card • Fully compatible with GPON - compliance G.987 Series standards with 10/2.5 Gbps line speed performance • Supports XFP optical modules
VDSL2+POTS Combo	• 48 VDSL2 and POTS integrated ports with up to 17a profile • Two-pair bonding for maximum speed • G.INP (G.998.4) support for re-transmission at the physical layer • Built-in support for SELT, DELT, and MELT • POTS line Loop-Start Operation • Ringing Mode – Balanced ringing with -15VDC offset on "Ring" • Multiple CODECs – G.711 (µ-Law and A-Law), G.729, G.723, G.726
