Basic Functions ZXUR 9000 works in 3 modes: ZXUR 9000 GSM single mode, ZXUR 9000 UMTS single mode and ZXUR 9000 G/U dual mode. ZXUR 9000 provides Abis/A/Gb/Ater interface in GSM and Iub/Iu-CS/Iu-PS/Iur in UMTS. The main functionalities of ZXUR 9000 include:  System information broadcast and UE access control  Mobility management such as handover, etc.  Radio resource management such as power control, cell resource allocation, etc.  Access bearer service of CS and PS domain Encryption and decryption for signaling and data

Service Functions Moreover, main service functions of ZXUR 9000 are listed as follows: GSM voice service (FR/EFR/HR/AMR/AMR-WB), GPRS, EDGE, EGPRS2-A of E-EDGE  Support VAMOS, Soft Synchronization, IFTA functionalities which can improve spectrum efficiency, and increase network capacity  UMTS R99 service, HSPA (DL 14.4Mbps/UL 5.76Mbps), HSDPA DB-DC, DB-DC+MIMO and 4C+64QAM+MIMO (DL 168Mbps/UL 23Mbps)  Supports 3GPP MOCN  Supports RNC Pool for resource sharing  Supports interworking between G/U and LTE network Support IPV6

Switch board provides large capacity and non-blocking switch function for system control management, communication between service processing boards and traffic connection among multiple access units. Switch board includes: EGBS (Enhanced GE Base Switch board, GSM/UMTS): EGBS is the switch board of control plane, and provides intra-shelf and inter-shelf control plane switch channel. EGBS in master shelf is in charge of the control plane channel between two slave shelves and one master shelf. ? EGFS (Enhanced GE Fabric Switch board, GSM/UMTS): EGFS is the switch board of user plane, and provides intra-shelf and inter-shelf user plane switch channel. EGFS in master shelf is in charge of the user plane channel between two slave shelves and one master shelf. EGFS in master shelf also works as a clock board, which is responsible for the clock supply and external synchronization

Processing board processes control plane signaling and user plane information, including voice, data, stream and transcoding. Processing board includes: ? UMP (Universal Management Process board, GSM/UMTS): UMP realizes operation and maintenance function, and provides global management processing. ? USP (Universal Service Process board, GSM/UMTS): USP realizes service processing function, including the GSM/UMTS control plane and user plane protocol stack processing. From the viewpoint of logic functionality, USP board is divided into three parts: CU (Common Unit), DUc (Dedicate Unit control plane) and DUm (Dedicate Unit media plane). Both CU and DUc are responsible for control plane processing. CU is used for common signaling processing among cells while DUc is dedicated for user signaling processing irrelative with cells. DUm is used for user plane processing. ETCB (Enhanced Trans Coder Board, GSM): ETCB realizes transcoding and adaptation functionality

Interface board provides access implementation for A, Abis, Ater, Gb, Iu, Iub, Iur interfaces. Different interface boards are configured so as to achieve customized transmission solution. Interface board includes:  EDTA (Enhanced Digital Trunk board ATM version, UMTS):EDTA realizes ATM over E1/T1 access function. ? ESDTA (Enhanced SDH Digital Trunk board ATM version, UMTS): ESDTA realizes ATM over CSTM-1 access function. EDTI (Enhanced Digital Trunk board IP version, GSM/UMTS): EDTI realizes IP over E1/T1 access function.  ESDTI (Enhanced SDH Digital Trunk board IP version, GSM/UMTS): ESDTI realizes IP over CSTM-1 access function.  EDTT (Enhanced Digital Trunk board TDM version, GSM): EDTT realizes TDM over E1/T1 access function.  ESDTT (Enhanced SDH Digital Trunk board TDM version, GSM): ESDTT realizes TDM over CSTM-1 access function, which can be used in A interface only. EGPB (Enhanced GE Process Board, GSM/UMTS): EGPB realizes GE/FE access function.  EAPB (Enhanced ATM Process Board, UMTS): EAPB realizes ATM over STM-1 access function.  ESDTG (Enhanced SDH Digital Trunk board GSM version, GSM ) ESDTG realizes TDM over CSTM-1 access function. ? EXGB1b (Enhanced XGE Process Board 1b, GSM/UMTS) EXGB1b realizes 10GE access function

ZXUR 9000 Interface Indices Transmission type Standard Interface Board Port Interface Remark E1/T1 ITU-T G.703/G.704 EDTA DB64 Provide 32*E1/T1 for ATM Iub EDTI DB44 Provide 32*E1/T1 for IP Iub/Abis/Gb EDTT DB44 Provide 32*E1/T1 for TDM A/Abis/Ater Channelized STM-1/OC-3 ITU-T G.957 ITU-T I.432.1 ITU-T I.432.2 ESDTA LC/PC Provide 4*channelized STM-1/OC-3 optical ports for ATM Iub ESDTI LC/PC Provide 4*channelized STM-1/OC-3 optical ports for IP Iub/Abis and Gb ESDTT LC/PC Provide 4*channelized STM-1/OC-3 optical ports for TDM A ESDTG LC/PC Provide 4*channelized STM-1/OC-3 optical ports for TDM Abis and Ater
STM-1/OC-3c ITU-T G.957 ITU-T I.432.1 ITU-T I.432.2 EAPB LC/PC Provide 4*STM-1/OC-3 optical ports for ATM Iub/Iu/Iur GE/FE IEEE 802.3 EGPB RJ45 Provide 4*GE/FE electrical ports for IP Iub/Iu/Iur/Abis/Gb/A LC/PC Provide 4*GE optical ports for IP Iub/Iu/Iur/Abis/Gb/A 10GE IEEE 802.3 EXGB1b LC/PC Provide 2*10GE optical ports for IP Iub/Iu/Iur/Abis/Gb/A

ZTE PCBA EGPB PCB ESDTI EST1 BIE1
EGBS 10126609

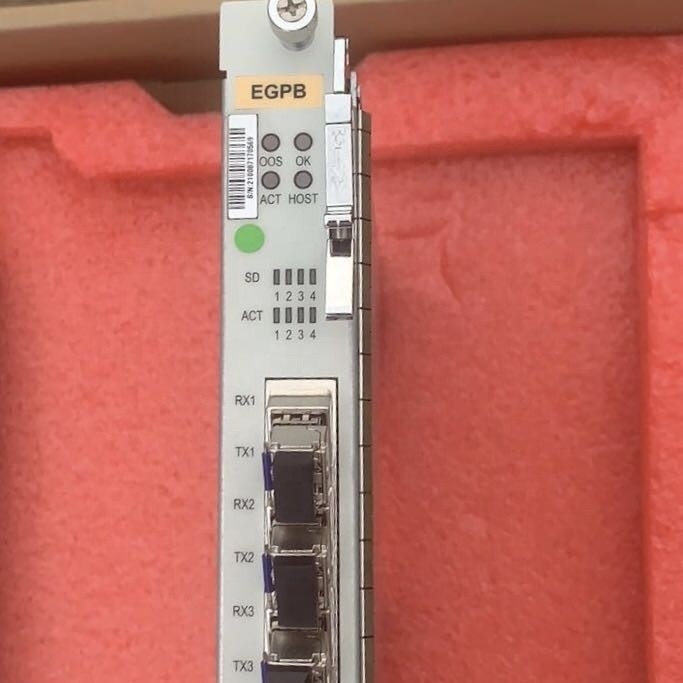

EGPB 10126597
ESDTI 10126603
UMP1c 10126607 UR9000G OMP
PCBA PCB EST1 BIE1

ZTE MDTB
ZTE MGEB
ZTE MIPI
ZTE MRB
ZTE MSDTB
ZTE MSPB
ZTE MTFI
ZTE MTSNC
ZTE MUIMC
ZTE MUIMT
ZTE MUIMU
ZTE MVTCA
