Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN97TM20 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

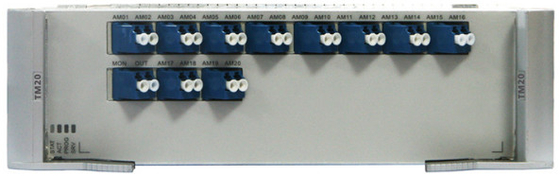

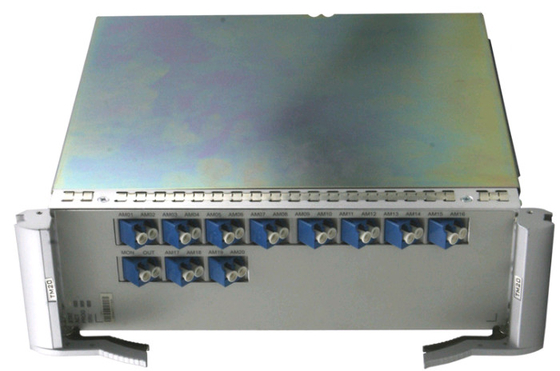

| TN97TM20: | 20-ports Flexible And Tunable Wavelength Board (Extended C-band) | Port: | Shenzhen |
|---|
The TM20 board provides for colorless add of a maximum of 20 coherent wavelength signals and supports in-service monitoring of optical power, alarms, and performance.
Table 1 describes the functions and features of the TM20 board.
| Function and Feature | Description |
|---|---|
| Basic function |
|
| WDM specification | Supports the DWDM specification. |
| Spectrum application |
|
| In-service optical performance monitoring | Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, mechanical specifications, and power consumption.
| Parameter | Unit | Value |
|---|---|---|
| Optical channels | - | 80 |
| Adjacent channel spacing | GHz | 50 |
| Operating wavelength range | nm | 1529 to 1561 |
| Insertion loss-AMxa-OUT | dB | <= 8 |
| Max. difference between channel insertion losses | dB | 1.5 |
| -1 dB spectral width | nm | > 0.16 |
| Port isolation | dB | >= 20 |
| Extinction ratio | dB | >= 30 |
| Reconfiguration time | s | <= 3 |
| Maximum reflectance | dB | -40 |
| Polarization dependent loss | dB | <= 1 |
| a: AMx represents the AM01 to AM20 interface. | ||
| Item | Unit | Value (50 GHz channel spacing) | Value (flexible grid wavelength signals, one slice is equal to 50 GHz) |
|---|---|---|---|
| Optical channels | - | 80 | - |
| Adjacent channel spacing | GHz | 50 | 50*n (n = 1 to 8) |
| Operating wavelength range | nm | 1529 to 1561 | 1529 to 1561 |
| Insertion loss-AMxa-OUT | dB | <= 8 | <= 8 |
| Maximum channel insertion loss difference | dB | 1.5 | 1.5 |
| -1 dB spectral width | GHz | > 20 | > 50*n-30; n = 1 to 8 |
| Port isolation | dB | >= 20 | >= 20 |
| Extinction ratio | dB | >= 30 | >= 30 |
| Reconfiguration time | s | <= 3 | <= 3 |
| Maximum reflectance | dB | -40 | -40 |
| Polarization dependence loss | dB | <= 1 | <= 1 |
| a: AMx represents the AM01 to AM20 interface. | |||
| Item | Unit | Value | |
|---|---|---|---|
| Slice width | GHz | 6.25 | |
| Total slice number (m) | - | 644 | |
| Centre frequency of every slice | THz | 192.053125+(m-1)*0.00625; m=1 to 644 | |
| Slice number per slot (n) | - | 6 to 64 | |
| Slot width | GHz | n*6.25; n=6 to 64 | |
| Insertion loss | AMxa-OUT | dB | ≤ 8b |
| Maximum channel insertion loss difference | dB | 1.5 | |
| -1dB spectral width | nm | > 6.25*n-25; n=6 to 64 | |
| Port isolation | dB | > 25 | |
| Extinction ratio | dB | ≥ 35 | |
| Reconfiguration time | s | ≤ 3 | |
| Maximum reflectance | dB | -30 | |
| Directivity | dB | ≥ 35 | |
| Polarization dependence loss | dB | ≤ 1.0 | |
| Attenuation range of each of wavelength | dB | 0 to 15 | |
| Attenuation precision of each of wavelength | dB | ≤ 1 (0 to 10 dB) ≤ 1.5 (> 10 dB) | |
| a: AMx represents the AM1-AM20 interface. b: This value is obtained when the attenuation is set to 0 dB. | |||
| Item | Unit | Value | |
|---|---|---|---|
| Slice width | GHz | 6.25 | |
| Total slice number (m) | - | 772 | |
| Centre frequency of every slice | THz | 191.253125+(m-1) x 0.00625; m=1 to 772 | |
| Slice number per slot (n) | - | 6 to 64 | |
| Slot width | GHz | n x 6.25; n=6 to 64 | |
| Insertion loss | AMxa-OUT | dB | ≤ 8b |
| Maximum channel insertion loss difference | dB | 1.5 | |
| -1dB spectral width | nm | > 6.25 x n-25; n=6 to 64 | |
| Port isolation | dB | > 25 | |
| Extinction ratio | dB | ≥ 35 | |
| Reconfiguration time | s | ≤ 3 | |
| Maximum reflectance | dB | -30 | |
| Directivity | dB | ≥ 35 | |
| Polarization dependence loss | dB | ≤ 1.0 | |
| Attenuation range of each of wavelength | dB | 0 to 15 | |
| Attenuation precision of each of wavelength | dB | ≤ 1 (0 to 10 dB) ≤ 1.5 (> 10 dB) | |
| a: AMx represents the AM1-AM20 interface. b: This value is obtained when the attenuation is set to 0 dB. | |||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN11TM20 | 30.0 | 45.0 |
| TN13TM20 | 30.0 | 33.0 |
| TN15TM20 | 18.0 | 42.0 |
| TN97TM20 | 18.0 | 42.0 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the –5°C temperature. | ||
