Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TN16WSD9 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

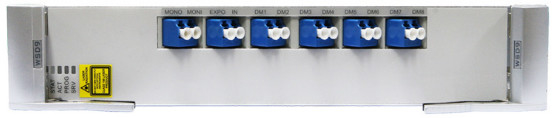

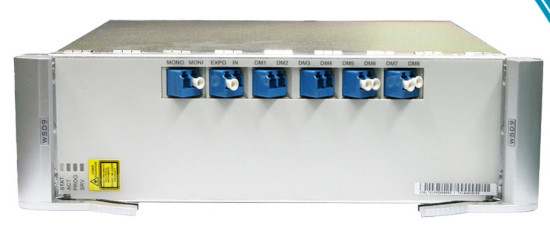

| TN16WSD9: | 9-port Wavelength Selective Switching Demultiplexing Board |
|---|
The WSD9 board dynamically grooms wavelengths. In addition to providing for in-service monitoring of optical performance, the WSD9 board supports alarm and performance event monitoring.
Table 1 describes the functions and features of the WSD9 board.
| Function and Feature | Description |
|---|---|
| Basic function | Dynamically drops wavelengths on ring or chain networks. This board can route any single wavelength or any wavelength combination to any port, achieving dynamic wavelength allocation. |
| WDM specification | Supports the DWDM specification. |
| Spectrum application |
|
| In-service optical performance monitoring | Provides two in-service monitoring ports. Each of these two ports connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the signal power performance without affecting traffic. |
| Alarm and performance event monitoring | Detects the optical power and reports the alarms and performance events for the board. |
| Optical power adjustment | Supports power adjustment for each wavelength. |
| Optical-layer ASON | Supported |
Specifications include optical specifications, mechanical specifications, and power consumption.
| Item | Unit | Value | ||
|---|---|---|---|---|
| Type | - | TN12WSD9 /TN17WSD9 | TN13WSD9 | |
| Optical channels | - | 40 | 80 | |
| Adjacent channel spacing | GHz | 100 | 50 | |
| Insertion loss | IN-DMxa IN-EXPO | dB | <= 8b | <= 8b |
| Maximum channel insertion loss difference | dB | 1.5 | 1.5 | |
| Operating wavelength range | nm | 1529-1561 | 1529-1561 | |
| -1dB spectral width | nm | > 0.32 | > 0.16 | |
| Port isolation | dB | > 25 | > 25 | |
| Adjacent channel isolation | dB | > 25 | > 25 | |
| Non-adjacent channel isolation | dB | > 30 | > 30 | |
| Extinction ratio | dB | >= 35 | >= 35 | |
| Reconfiguration time | s | <= 3 | <= 3 | |
| Maximum reflectance | dB | -40 | -40 | |
| Directivity | dB | 35 | 35 | |
| Polarization dependence loss | dB | <= 1 | <= 1 | |
| Attenuation range of each of dropping wavelengths | dB | 0-15 | 0-15 | |
| Attenuation precision of each of dropping wavelengths | dB | <= 1 (0 to 10 dB) <= 1.5 (>10 dB) | <= 1 (0 to 10 dB) <= 1.5 (>10 dB) | |
| NOTE: a: DMx represents the DM1-DM8 interface. b: This value is obtained when the attenuation of the VOA is set to 0 dB. | ||||
| Item | Unit | TN16WSD9(50 GHz channel spacing) | TN16WSD9(flexible grid, one slice is equal to 50 GHz) | |
|---|---|---|---|---|
| Optical channels | - | 80 | - | |
| Adjacent channel spacing | GHz | 50 | 50*n(n=1 to 8) | |
| Insertion loss | IN-DMxa IN-EXPO | dB | <= 8b | <= 8b |
| Maximum channel insertion loss difference | dB | 1.5 | 1.5 | |
| Operating wavelength range | nm | 1529-1561 | 1529-1561 | |
| -1dB spectral width | GHz | > 25 | > 50*n-25; n=1 to 8 | |
| Port isolation | dB | > 25 | > 25 | |
| Adjacent channel isolation | dB | > 25 | > 25 | |
| Non-adjacent channel isolation | dB | > 30 | > 30 | |
| Extinction ratio | dB | >= 35 | >= 35 | |
| Reconfiguration time | s | <= 3 | <= 3 | |
| Maximum reflectance | dB | -40 | -40 | |
| Directivity | dB | 35 | 35 | |
| Polarization dependence loss | dB | <= 1 | <= 1 | |
| Attenuation range of each of dropping wavelengths | dB | 0-15 | 0-15 | |
| Attenuation precision of each of dropping wavelengths | dB | <= 1 (0 to 10 dB) <= 1.5 (>10 dB) | <= 1 (0 to 10 dB) <= 1.5 (>10 dB) | |
| NOTE: a: DMx represents the DM1-DM8 interface. b: This value is obtained when the attenuation of the VOA is set to 0 dB. | ||||
| Parameters | Unit | Specifications | |
|---|---|---|---|
| Slice width | GHz | 12.5 | |
| Total slice number (m) | - | 386 | |
| Centre frequency of every slice | THz | 191.25625+(m-1)*0.0125; m=1 to 386 | |
| Slice number per slot (n) | - | 3 to 32 | |
| Slot width | GHz | n*12.5; n=3 to 32 | |
| Insertion loss | IN-DMxa | dB | ≤8b |
| Maximum channel insertion loss difference | dB | 1.5 | |
| -1dB spectral width | GHz | >2*(6.25n-12.5); n=3 to 32 | |
| Port isolation | dB | >25 | |
| Extinction ratio | dB | ≥35 | |
| Reconfiguration time | s | ≤3 | |
| Directivity | dB | 35 | |
| Maximum reflectance | dB | -30 | |
| Ploarization dependence loss | dB | ≤1 | |
| Attenuation range of each of dropping wavelengths | dB | 0 to 15 | |
| Attenuation precision of each of dropping wavelengths | dB | ≤1 (0dB-10dB) | |
| ≤1.5 (>10dB) | |||
| a: DMx represents the DM1-DM9 interface. b: This value is obtained when the attenuation of the VOA is set to 0 dB. | |||
| Board | Typical Power Consumption (W) | Maximum Power Consumptiona (W) |
|---|---|---|
| TN12WSD9 | 25.4 | 28.5 |
| TN13WSD9 | 25.4 | 28.5 |
| TN16WSD9 | 25.0 | 27.5 |
| TN17WSD9 | 25.0 | 27.5 |
| TN96WSD9 | 25.0 | 27.5 |
| a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. | ||
